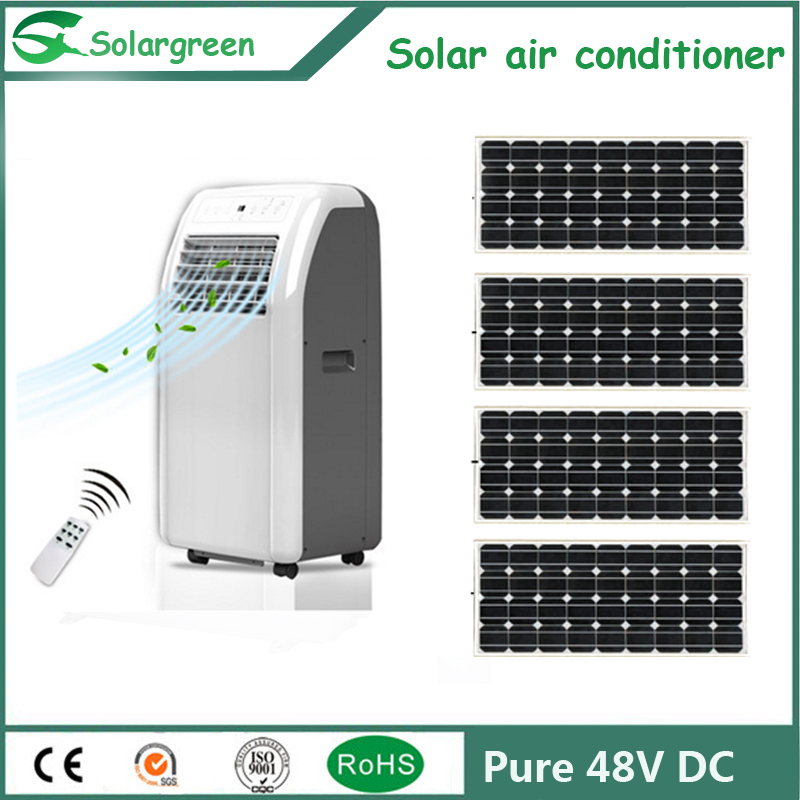

Portable type 24V/48V DC 9000btu-12000btu 100% off Grid Solar Air Conditioner with Panasonic Compressor



Portable type 100% Off Grid Solar air conditioner
(9000BTU-12000BTU)
Features:
1.Off Grid Working with 100% solar energy
2.Panasonic brand pure DC 48V compressor,no need inverter
3.All other electronic parts such as Motor/relay are pure 48v DC.
4.Supreme high efficiency rating reach to 6W/W; 20.47 Btu/h/w;
Consuming less than half wattage than other type Solar air conditioner.
5.8hours-36hours working time option

Portable type 24V DC 100% off grid Solar air conditioner Product Parameters

Power Supply 24VDC (DC 21-29v) Power Supply:48VDC (42V to60V)
Model No. TKP-26/DC-24V TKP-35/DC-24V TKP-26/DC-48V TKP-35/DC-48V
Performance
Capacity Cooling Btu/h 9000 12000 9000 12000
W 2600 3500 2600 3500
Heating Btu/h 10000 13000 10000 13000
W 2800 3800 2800 3800
Noise dB(A) ≤44 ≤46 ≤44 ≤46
Air Circulation m³/h 400 500 400 500
Suitable Area 8~10 10~15 8~10 10~15
EER W/W 5.20 5.00 5.20 5.00
Btu/h/w 15.79 15.79 15.79 15.79
Refrigerant R-134A R-134A R-134A R-134A
Compressor Panasonic DC 48V Panasonic DC 48V
Power Consumption
Rated Power Input W 500 700 500 700
Rated Current A 22 29 11 15
Input Power range V DC 21-29v DC 21-29v DC 42-60 DC 42-60
Dimension
Unit Shipping mm 350x350x756 350x350x756 350x350x756 350x350x756
NET mm 550x398x788 550x398x788 550x398x788 550x398x788
Weight
Indoor Unit Net/Gross kg 18/22 22/26 18/22 22/26
Why Choose Us?

1.Reply your inquiry in 24Hrs
2.Feedback of complaint in 24Hrs
3.OEM/ODM are accepted
4.Exclusive agents in local country are welcomed
5.Providing professional technical advice
6. Supergreen Tech Co.,Ltd, is a professional manufacturer of solar products such as Solar lights, Solar air conditioner, Solar refrigerators, Solar pest control lamp and so on.
With CE certification and several patent technology, making sure that we can provide all of our clients the best user friendly products!

FAQ:

Q1. Can I have a sample order for Solar air conditioner?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
Sample needs 7-20 days, mass production time needs 3-6 weeks.

Q3. Do you have any MOQ limit for air conditioner order?
Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
We usually ship by Sea shipping. It usually takes around 1-2 months

Q5. How to proceed an order for solar air conditioner ?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on air conditioner product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
Yes,we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will repair them and resend them to you or provide the new parts to replace and ship with new containers. And we can discuss the solution including re-call according to real situation.
